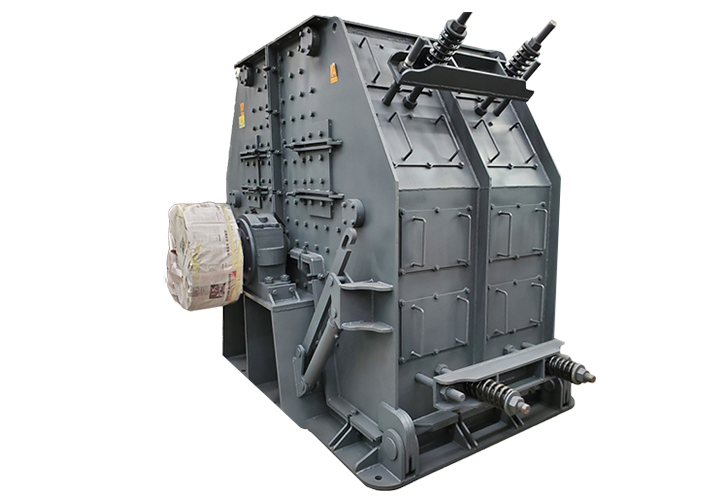

Reversible Impact Crusher

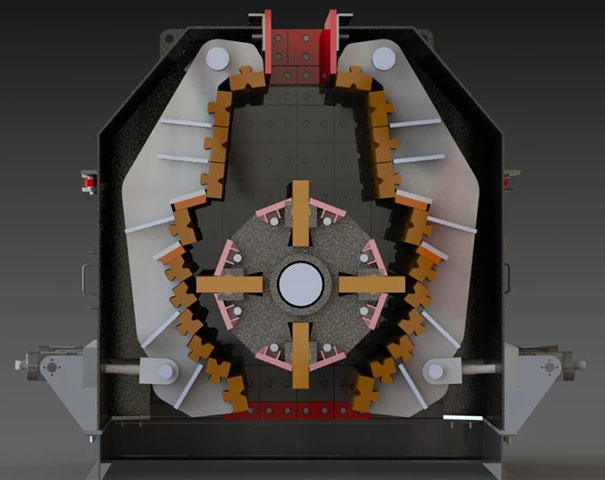

Stone is fed into the crusher and are struck by the blow bar which is moving at high speed and are thrown to the impact plate on the entrance of crusher for the first crushing. The crushed materials with the same granularity are fed evenly into the main crushing chamber for the second crushing. The particles that are crushed uniformly are rushed to the internal saw tooth lining plate of impact chamber, then rebound upward and are crushed again by the blow bar. At the same time, the stone is crushed under the interaction of striking with each other. The above process will proceed repeatedly, and finally the materials will be discharged from the outlet.
