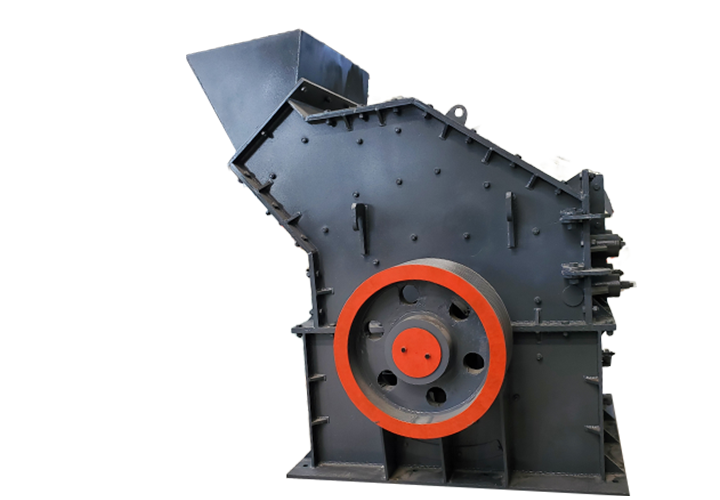

High-efficiency Fine Crusher

PCX High-efficiency Fine Crusher is the achievement of FLAMCO technician ‘s efforts , and it plays the irreplaceable role in fine crushing with its high efficiency and low cost .It is widely applied in all kinds of ore ,cement ,refractory material ,mechanism construction sand etc.

Feeding Size: 120-190mm

Capacity: 35-280tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

High-efficiency Fine Crusher advantage

High crushing efficiency: grate plate design, rigid hard extrusion crushing, making the fine crushing efficiency greatly improved.

Low maintenance cost: compared with traditional pulverize, energy saving is better, stable operation, maintenance cost is lower.

Environmental and energy saving: high speed and fast operation , save electricity and reduce consumption.

Wear-resistant parts durable: more durable with wear-resistant parts material.

Working principle

The main working part of the PCX fine crushing hammer crusher is the rotor with the hammer head. The rotor consists of a main shaft, a disc, a pin, a hammer handle and a hammer head. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is supplied from the upper part. The material port enters the machine and is broken by the impact, impact, shearing and grinding of the high-speed hammer. The upper part of the rotor is provided with a counterattack plate, the rear of the rotor is provided with a striking plate, and the lower part of the rotor is provided with a sieve plate to crush the material.

Technical Specification

Model	Feed Opening Size (mm)	Max Feed Size (mm)	Output size（mm）	Capacity of Cement (t/h)	Capacity of Limestone (t/h)	Motor Power(kw)
PCX0804	400x185	＜120	≤3（85%）	20-30	35-45	45
PCX0806	500x250	＜180	≤3（85%）	35-40	45-55	55
PCX0808	550x330	＜180	≤3（85%）	35-45	55-65	55
PCX1010	1000x350	＜180	≤3（85%）	45-55	65-75	75
PCX1212	1200x450	＜180	≤5（85%）	90-100	100-110	132
PCX1414	1500x500	＜190	≤5（85%）	100-150	100-150	160
PCX1616	1600x550	＜190	≤5（85%）	170-210	190-250	250
PCX1818	1800x800	＜190	≤5（85%）	250-270	280-310	315

Still not finding what you're looking for?
Contact our consultants for more available products.

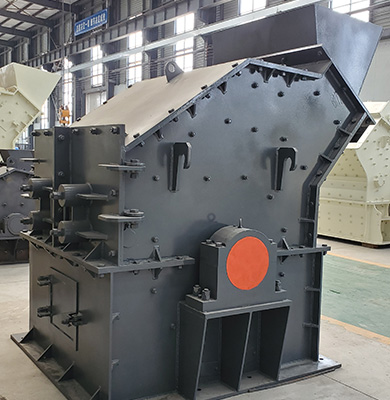

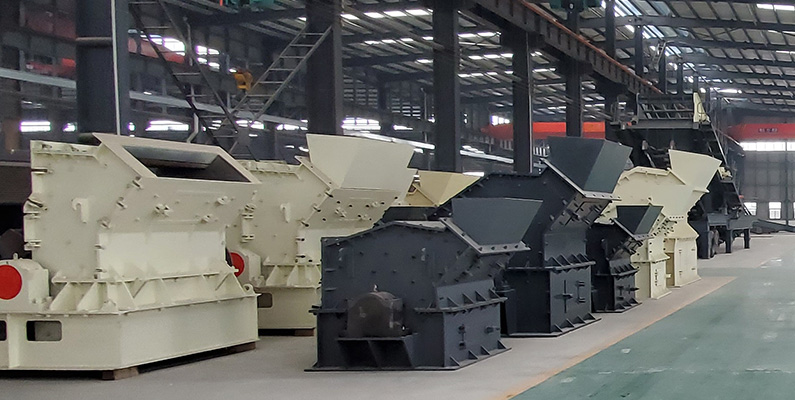

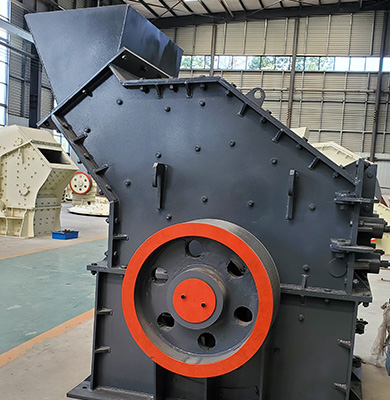

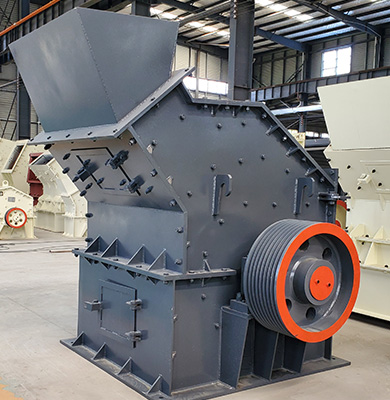

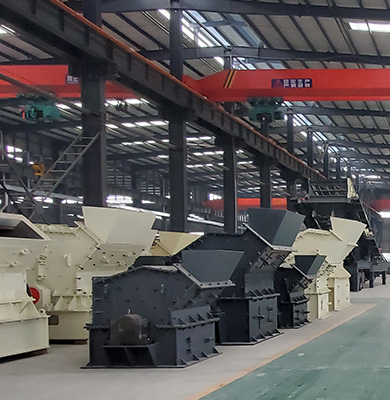

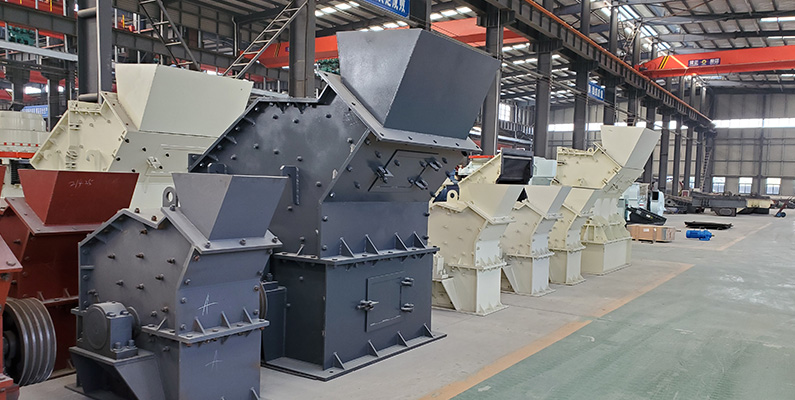

Products Gallery
