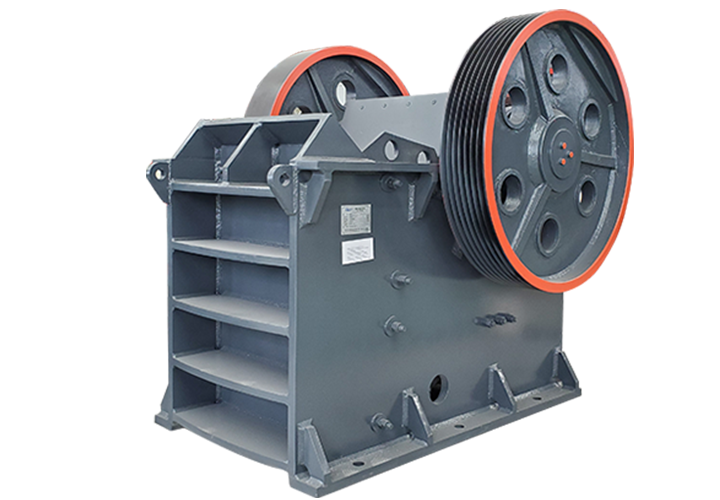

PE Series Jaw Crusher

PE series jaw crusher which is with large feeding size, durable lifetime and stable work performance is one kind popular primary crushing machine. It mainly used in various industries，such as mining, smelting, building road and railway construction, water conservation and chemical industry etc.
FLAMCO has 2 series of jaw crusher : PE and PEX .PE series is applied in primary crushing, PEX series is widely applied in secondary crushing and fine crushing.

Feeding Size: 210-1200mm

Capacity: 5-800tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Jaw crusher advantage

As a classic primary crusher, it has high crushing ratio to allow the large size stone to be crushed.

Simple internal structure of jaw crusher allows the easy operation and maintenance.

Symmetrical design of jaw plate improves the utilization rate of jaw plate , extends the lifetime of jaw plate and save the operation cost.

Gasket-type discharge port adjustment device is reliable and convenient, with a large adjustment range, which can meet the needs of different customers.

PE Series Jaw Crusher working principle

Jaw crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus, the material will be crushed in the crushing chamber which is composed of the Fixed jaw plate, swing jaw plate and the side plate. After the stone is crushed into the size as per the discharge opening size ,The material will be discharged from the lower part of machine .

Technical Specification

Model	Size of Feed Opening(mm)	Max Feed Size(mm)	Discharge Range Opening(mm)	Capacity(t/h)	Motor Power(kw)
PE250X400	250X400	210	25-60	5-21	15
PE-400×600	400×600	350	40-90	16-64	30
PE-500×750	500×750	425	50-100	40-96	45
PE-600×900	600×900	500	65-125	90-150	55
PE-750×1060	750×1060	630	60-150	110-380	110
PE-900×1200	900×1200	780	950-165	220-450	132
PE-1000×1200	1000×1200	850	200-300	280-560	160
PE-1200×1500	1200×1500	1020	150-300	400-800	220
PE-1500×1800	1500x1800	1200	210-360	520-1100	280
PEX-150×750	150×750	120	10-40	8-26	15
PEX-250×750	250×750	210	15-50	15-30	22
PEX-250×1000	250×1000	210	15-60	16-48	30
PEX-250×1200	250×1200	210	15-60	21-56	37
PEX-300×1300	300×1300	250	20-60	30-85	55

Still not finding what you're looking for?
Contact our consultants for more available products.

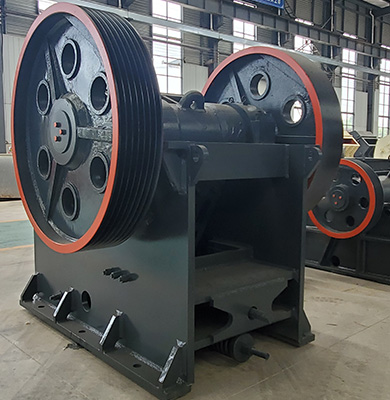

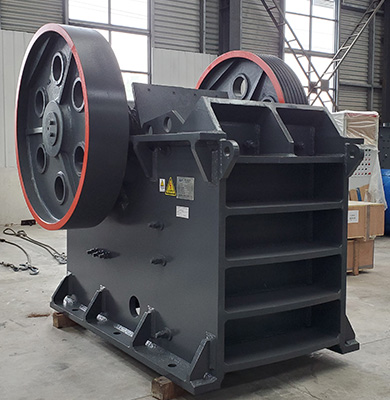

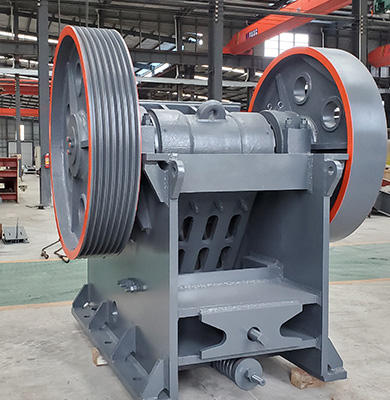

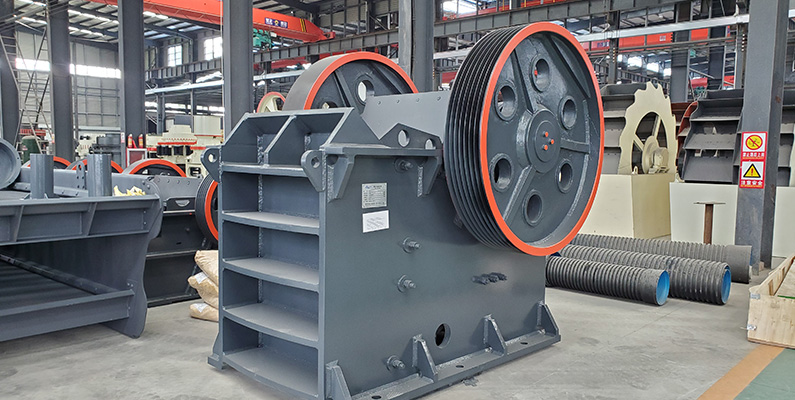

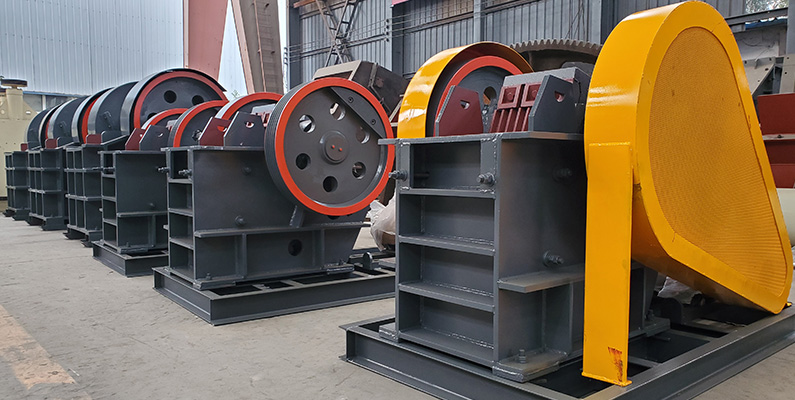

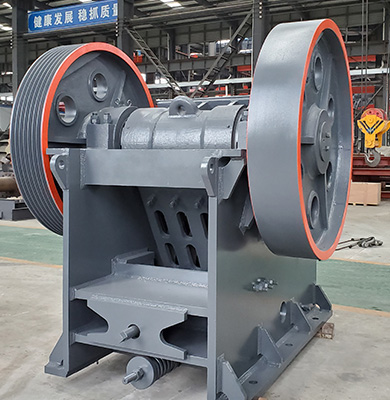

Products Gallery
