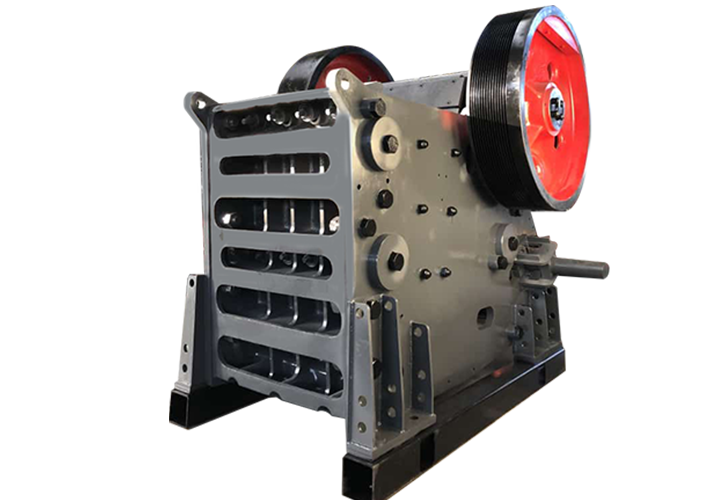

JC Series Jaw Crusher

JC Series Jaw Crusher advantage

The deep cavity symmetrical crushing cavity design maximizes the feed size, output and crushing ratio of the crusher. The combination of the design of the motion mechanism and the running speed of the crusher enables the crusher to obtain greater output a

Adopts the Mechanical or hydraulic wedge vent adjustment system, the operation is easier and safer.

The movable jaw is made of high-quality cast steel and driven by large cast pulleys and flying dragons. Forged heavy-duty eccentric shafts and high-quality large spherical roller bearings give the crusher exceptional reliability.

The motor support is integrated with the crusher, which reduces the installation space of the crusher and the length of the V-belt, makes the foundation simple, and the service life of the V-belt is longer.

Jaw crusher working principle

Motor of JC series jaw crusher is connect with pulley by V-belt and make the swing jaw assembly up and down though eccentric shaft. It will make the swing jaw plate to close the fixed jaw plate , the stone will be crushed or chopped ., the stone is crushed into the size as per the discharge opening size with the rotation of motor, The material will be discharged from the lower part of machine .

Technical Specification

Model	Size of feed opening(mm)	Max feed size(mm)	Discharge range opening(mm)	Capacity(t/h)	Motor power(kw)
JC2342	600X1060	500	60-175	85-300	75
JC3042	760X1060	640	70-200	120-490	110
JC3343	850X1100	720	90-215	160-510	160
JC3749	950X1250	800	110-250	260-810	160
JC4255	1070X1400	900	125-250	360-920	200
JC4763	1200×1600	1000	150-300	500-1250	250
JC5979	1500×2000	1250	175-300	700-1500	400

Still not finding what you're looking for?
Contact our consultants for more available products.

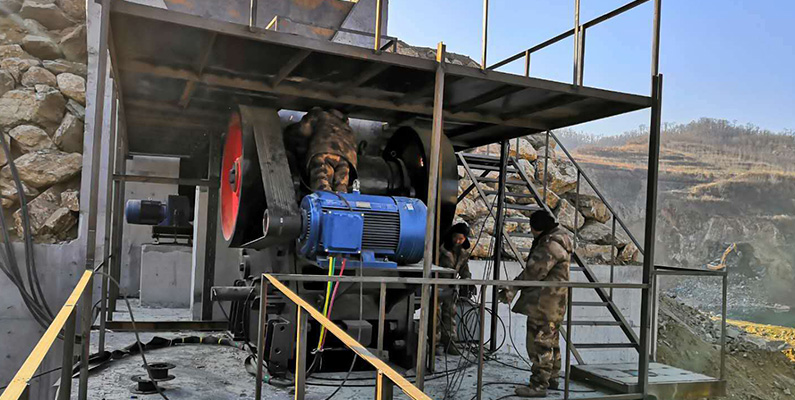

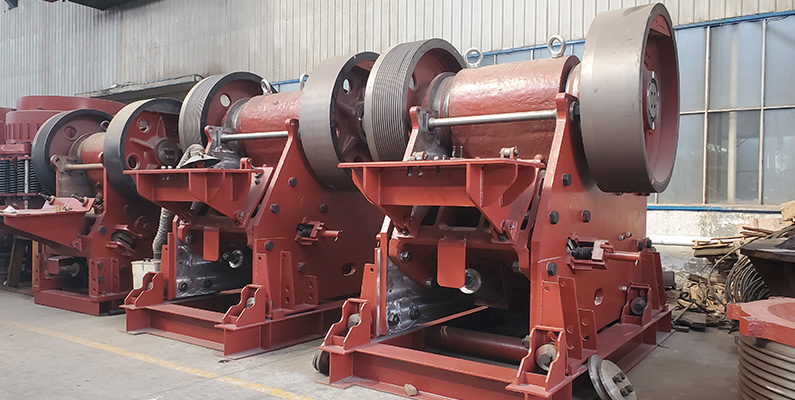

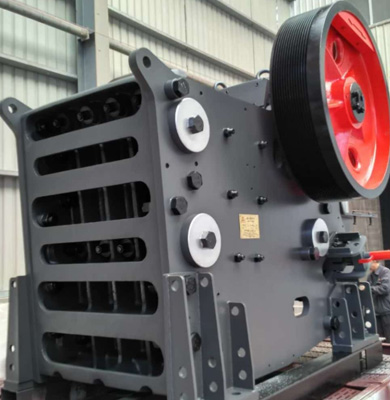

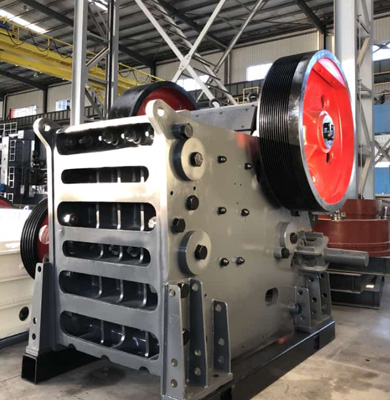

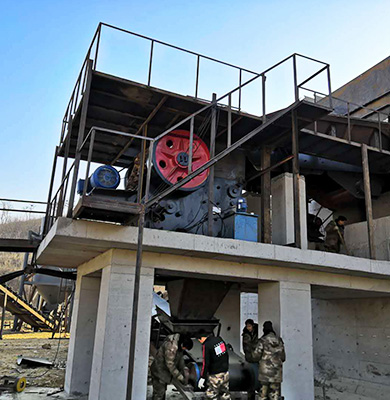

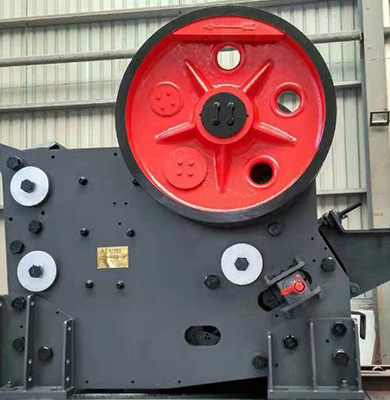

Products Gallery

Send inquiry

We provide complete technical specifications, product manuals and more wonderful contents. Please leave your information below for more product information

Related Equipment

Impact crusher

inquiry

Single Cylinder Hydraulic Cone Crusher

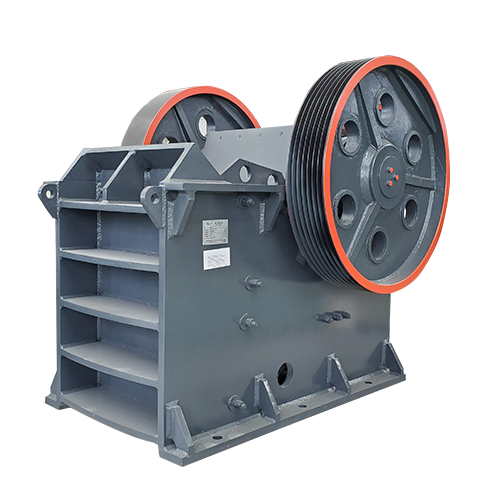

PE Series Jaw Crusher
