Portable Screen Plant

Mobile Screening Plant is used to sieve different kind of size base on the clients requirement ,. The plant has the advantage of reasonable match, unobstructed material discharge, reliable run, convenient operation, high efficiency and energy conservation. The good mobility can make it move in and between different quarries. It can also work with other plants to meet different feed requirements.

Feeding Size: 200-350mm

Capacity: 50-450tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Portable Screen Plant Advantage

Based on different requirement, it can be used for independent using or combine with other mobile crushing plant to do the second crushing stage or third crushing stage.

The mobile screen plant can directly reach the quarry site by trailer, and eliminates the cumbersome steel frame structure and foundation construction, saving a lot of time.

The mobile screen plant can process materials on site without having to move the materials off site for reprocessing, which greatly reduces the transportation cost of materials.

With Reasonable and compact structure, it can save the space and improves the flexibility of site stationing.

Working principle

Mobile screening plant includes vibrating screen, mounted belt conveyor, electric cabinet, half suspension trailer chassis, and other supporting parts. The material is fed into vibrating screen by the loader or belt conveyor. The raw material will be sieved into different size by mesh which is based on the client requirement , then delivered to ground or trucks though the mounted belt conveyor directly.

Technical Specification

Model	WQ1548YK	WQ1860YK	WQ2160YK	WQ2460YK
Transportation Dimension
Length（mm）	14740	15070	15070	15300
Width（mm）	3360	3380	3533	4360
Height（mm）	4500	4533	4533	4950
Axle （kg）	11540	16000	17120	21600
King Pin Load（kg）	14260	12300	13500	18000
Screen
Model	3YK1548	3YK1860	3YK2160	3YK2460
No of Axle	2	3	3	3
Feeding Belt Conveyor
Model	B800X12.5Y	B800X12.7Y	B800X12.7Y	B1000X12.7Y
Under Screen Belt Conveyor
Model	B650X7.5Y	B800X8.2Y	B1000X8.2Y	B1400X8.4Y
Side Belt Conveyor
Model	B500X5.6Y	B500X5.6Y	B500X5.6Y	B800X12.5Y

Still not finding what you're looking for?
Contact our consultants for more available products.

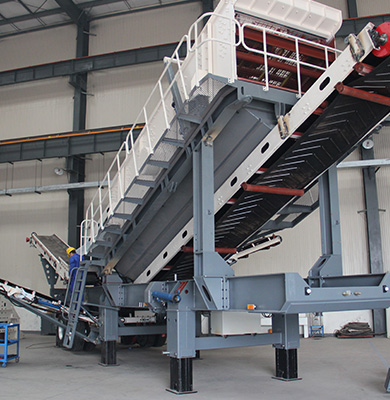

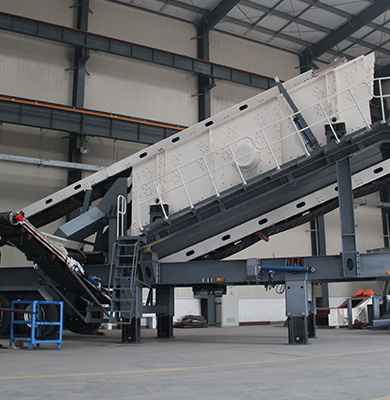

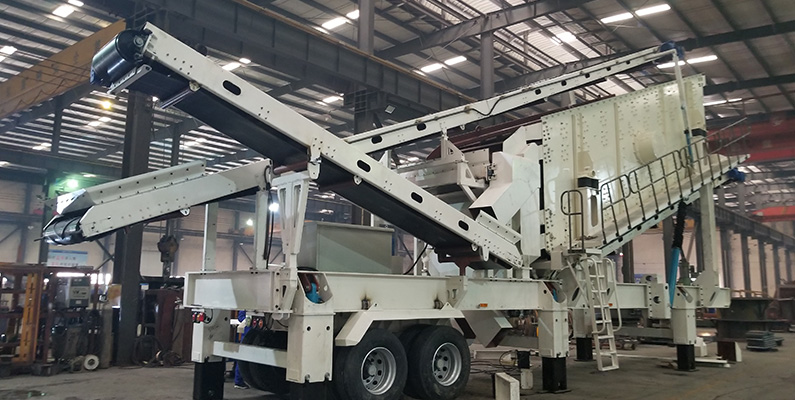

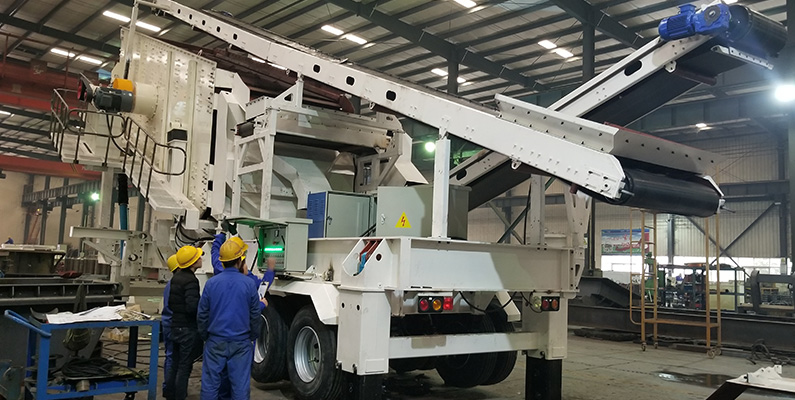

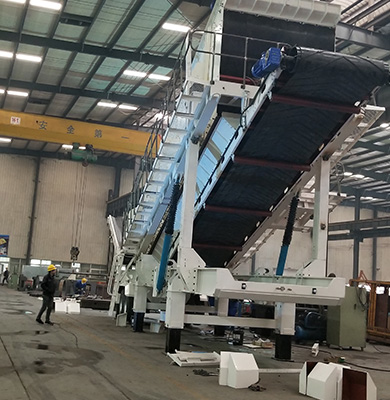

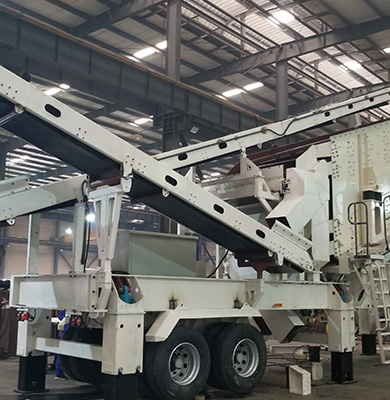

Products Gallery
