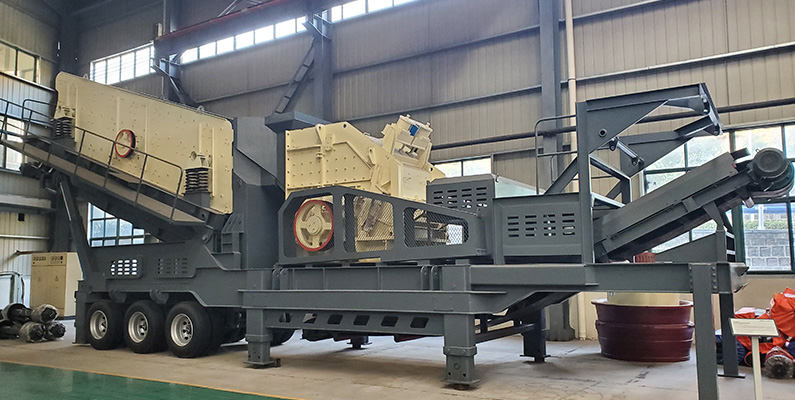

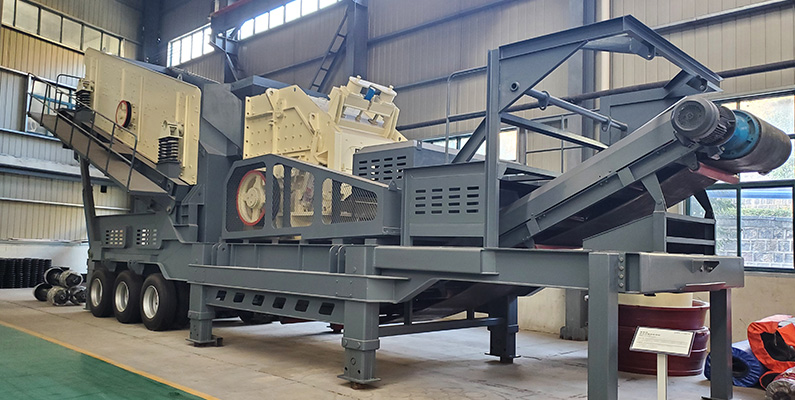

Portable Impact Crusher Plant

Mobile impact crushing and screening plants is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The plants have the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

Feeding Size: 300-500mm

Capacity: 50-220tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Portable Impact Crusher Plant Advantages

Based on different requirement, it can be used for independent using or combine with other mobile crushing plant to do the second crushing stage or third crushing stage.

The impact crushing and screening plant can directly reach the quarry site by trailer, and eliminates the cumbersome steel frame structure and foundation construction, saving a lot of time.

The mobile crushing plant can process materials on site without having to move the materials off site for reprocessing, which greatly reduces the transportation cost of materials.

With Reasonable and compact structure, it can save the space and improves the flexibility of site stationing.

Working principle

Mobile impact crushing and screening plant is composition of impact crusher vibrating screen，mounted belt conveyor and electric cabinet ，Half Suspension Trailer Chassis, and other supporting parts. station accepts the materials from primary crushing station, then makes multistage screen to them, and washes the materials on the screen according to the specific need; the bigger material enters into impact crusher and is crushed again, then returns to vibrating screen, so circulates.

Technical Specification

Model	WQ1010F	WQ1210F	WQ1214F	WQ1315F
Transportation Dimension
Length（mm）	10800	12200	12500	14500
Width（mm）	2480	2743	2900	3000
Height（mm）	4170	4200	4200	4200
Axle （kg）	15900	17200	22100	32400
King Pin Load（kg）	8640	10500	13600	14500
Impact Crusher
Model	PFW1010II	PFW1210II	PFW1214III	PFW1315III
Capacity（T/H）	50-80	70-120	90-160	12-270
Mounted Belt Conveyor	B650X6.2M	B800X7.2M	B1000X7.2M	B1000X7.2M
Screen
model	4YK1545	4YK1848	4YK1860	4YK2160
No of Axle	2	2	2	3
Model	WQ1010F	WQ1210F	WQ1214F	WQ1315F
Transportation Dimension
Length（mm）	10800	12200	12500	14500
Width（mm）	2480	2743	2900	3000
Height（mm）	4170	4200	4200	4200
Axle （kg）	15900	17200	22100	32400
King Pin Load（kg）	8640	10500	13600	14500
Impact Crusher
Model	PFW1010II	PFW1210II	PFW1214III	PFW1315III
Capacity（T/H）	50-80	70-120	90-160	12-270
Mounted Belt Conveyor	B650X6.2M	B800X7.2M	B1000X7.2M	B1000X7.2M
Screen
model	4YK1545	4YK1848	4YK1860	4YK2160
No of Axle	2	2	2	3
