Mobile Jaw Crusher Plant

CM series crawler mobile jaw crusher plant is designed and manufactured with German technology. And it has reached the world advanced level. The plant adopts first level mobile crushing technology which fully meets the customers’ requirement for mobile crushing and changes your profit mode. The plant is eminently suitable for the processing of natural stone and provides an excellent final grain size.

Feeding Size: 425-750mm

Capacity: 40-350tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Mobile Jaw Crusher Plant Advantage

Grizzly vibrating feeder makes optimal coarse screening, thus maximizing the total performance and reducing wear.

The diesel direct drive in combination with Cummins motor allows for a max performance at a small amount of space.

CM mobile jaw crusher plant is fitted with the field-tested crawler mobile jaw crusher plant. The hydraulic controlled mobile jaw crusher guarantees constant product quality and high availability.

For the optimization of performance and availability mobile processing plant is operated under intelligent control background.

Working principle

Crawler mobile crusher station is a kind of crushing equipment with high efficiency, energy saving and environmental protection. It adopts the hydraulic system driving crawler to run smoothly. The vibration feeder is for optimum pre-scaling and feed material evenly. The crusher could be optional for jaw crusher, impatct crusher, cone crusher, VSI crusher etc. The diesel-direct drive in combination with motor allows for a maximum performance at a small amount of space. Magnetic separator, discharge belt and water spray system are optionally available. Under any conditions, the crawler mobile station can reach working site directly with little assembly time. This reduces the processing and operation process of materials .The equipment can be put into use immediately after arriving at the user site.

Technical Specification

Specification			CM Series Crawler Mobile Jaw crusher
Feeder
Model	Capacity （t/h）	Max feeding size （mm）	Feeding height （mm）	Feed hopper volume （m³）	Discharge height（mm）
ZSW-9638	150	500	4200	3.2	2100
Jaw crusher
Model	Feeding open size (mm)	Max feeding size （mm）	Weight（T）	Driven mode/power （kw）	Discharging opening size（mm)
PE600x900	600x900	500	15.6	55	60-125
C96	580X930	480	10.6	90	60-170
C106	700X1060	580	18.8	110	70-180

Belt conveyor			Transport size
Main belt conveyor	Discharge height（mm）	Side belt conveyor	Length(mm)	Width(mm)	Height(mm)
B1000x10000	2700	B650x3600	13500	2950	3750

Still not finding what you're looking for?
Contact our consultants for more available products.

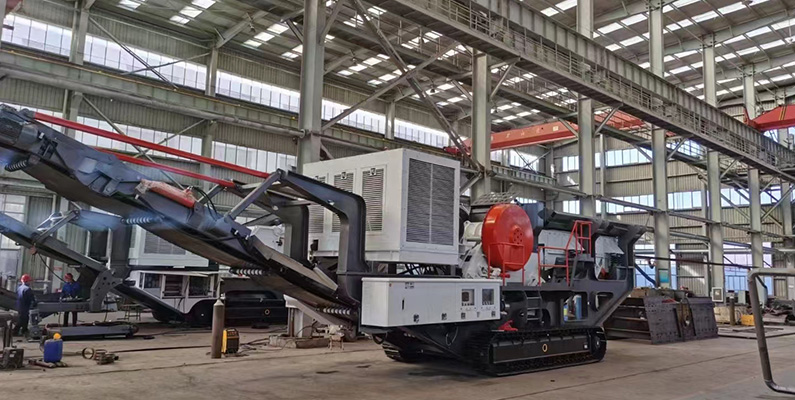

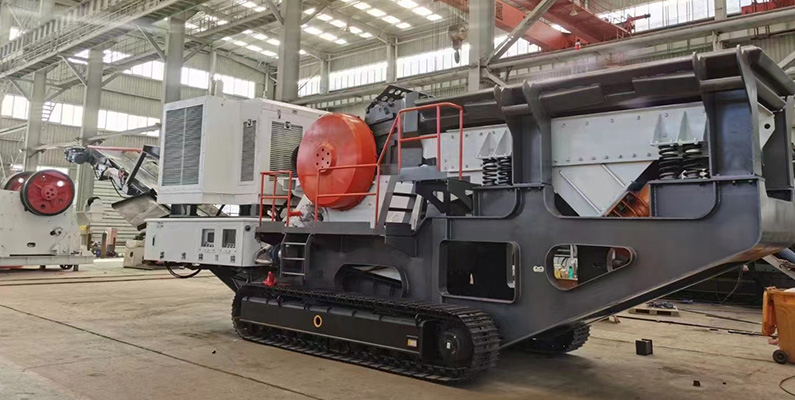

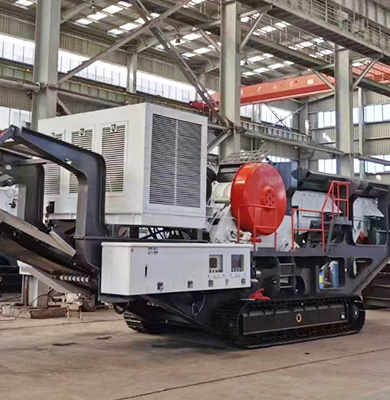

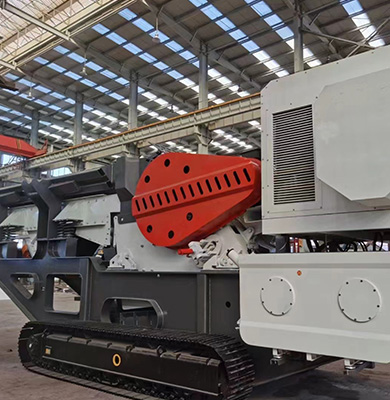

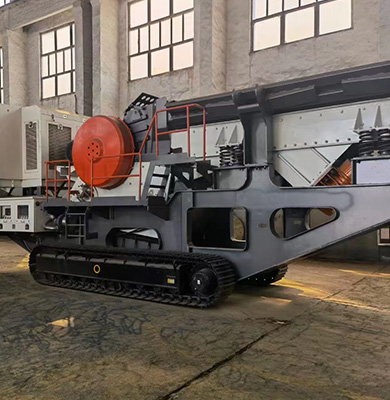

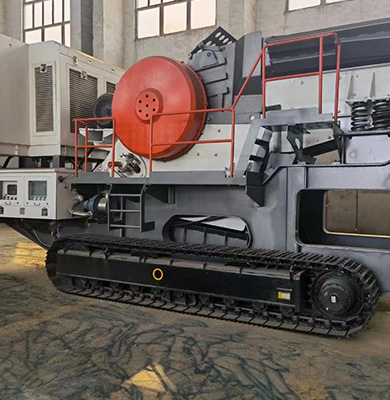

Products Gallery
