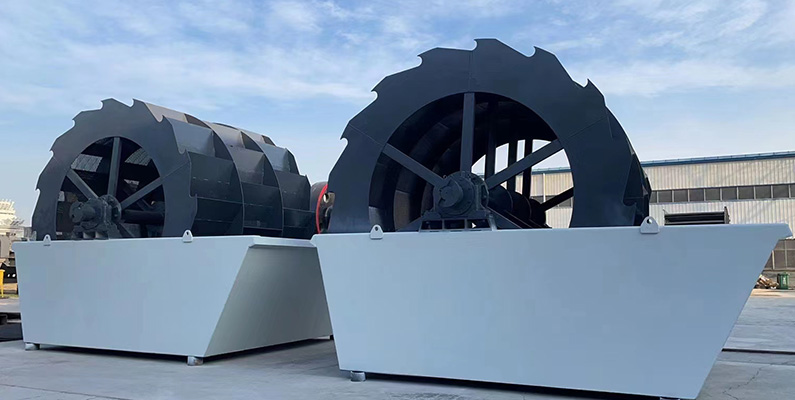

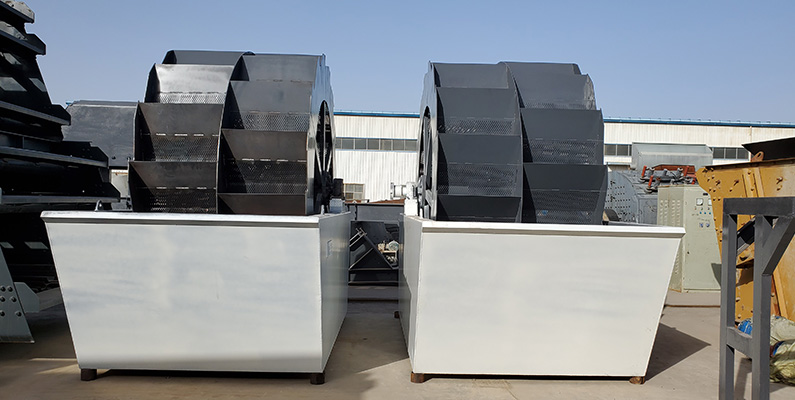

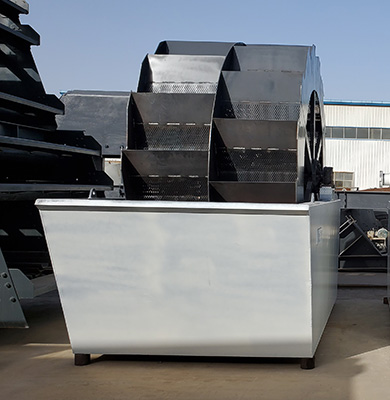

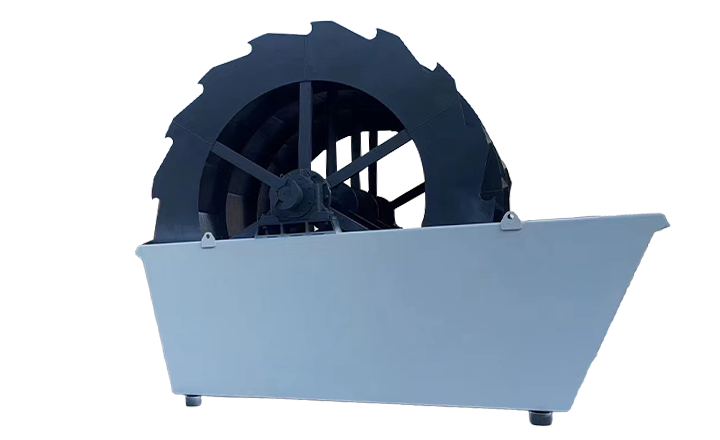

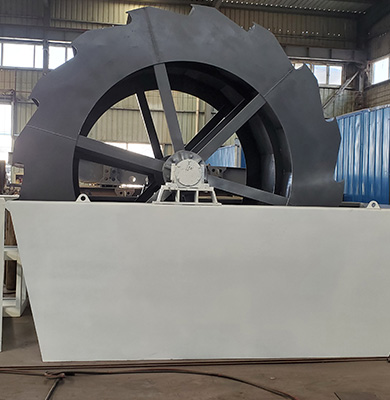

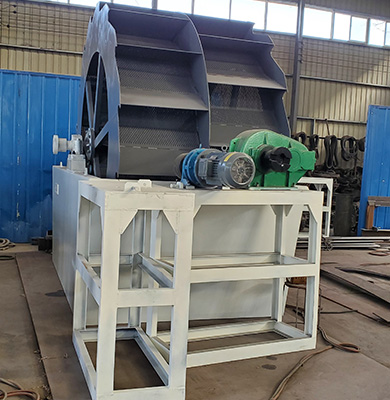

XS Sand Washer

XS Series Sand Washer is a bucket-typed sand washer. It is widely applied to the sandstone and ore dressing industry ect with the purpose of washing, classifying and dehydration of the stone and aggregate.

Feeding Size: 0-10mm

Capacity: 20-160tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

XS sand washer advantage

Simple structure, convenient to repair.

High processing capacity and low power consumption.

Low wear-parts consumption, low cost.

Working principle

XS series sand washer is mainly constituted by bucket, pedestal and driving system. The pedestal is the washing trough and also supports bucket and driving system. The bucket take out sand from the water trough and transmitting by the driving system.

Technical Specification

Model	Diameter of Wheel (mm)	Capacity (t/h)	Motor Power (kw)	Rotation Rater（r/min）	Max Feeding Size（mm）
XS2610	2600	20-50	5.5	1.178	≤10
XS2915	2900	60-120	11	1.1.177	≤10
XS3016	3000	80-160	15	1.179	≤10

Still not finding what you're looking for?
Contact our consultants for more available products.

Products Gallery

Send inquiry

We provide complete technical specifications, product manuals and more wonderful contents. Please leave your information below for more product information

Related Equipment

MS series vibrating screen

inquiry

Sand Recycling Machine

inquiry

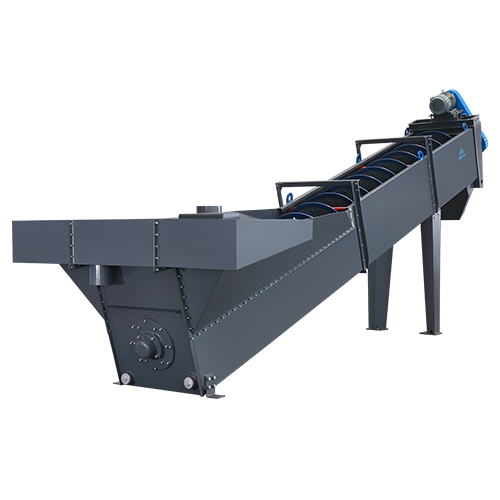

XL sand washer
